Dickinson Hall

Princeton University, Princeton, NJ, 08544

View Accessibility Symbols

Accessibility Symbols

For more information about what these symbols mean, view our Accessibility Symbols Guide.

Close this popup window.

Access Guide

Show Easy Read

About

  • The nearest University owned parking garage is the Prospect Avenue Garage.
  • View information on Prospect Avenue Garage (opens new tab) .
  • Dickinson Hall is a 4 story medium sized building.
  • The building has 3 stairways, 1 of which has a stair lift. There is no elevator in this building.
  • The floors are signed as Ground, first, second and third.
  • Dickinson Hall is connected internally to McCosh Hall.

Getting Inside

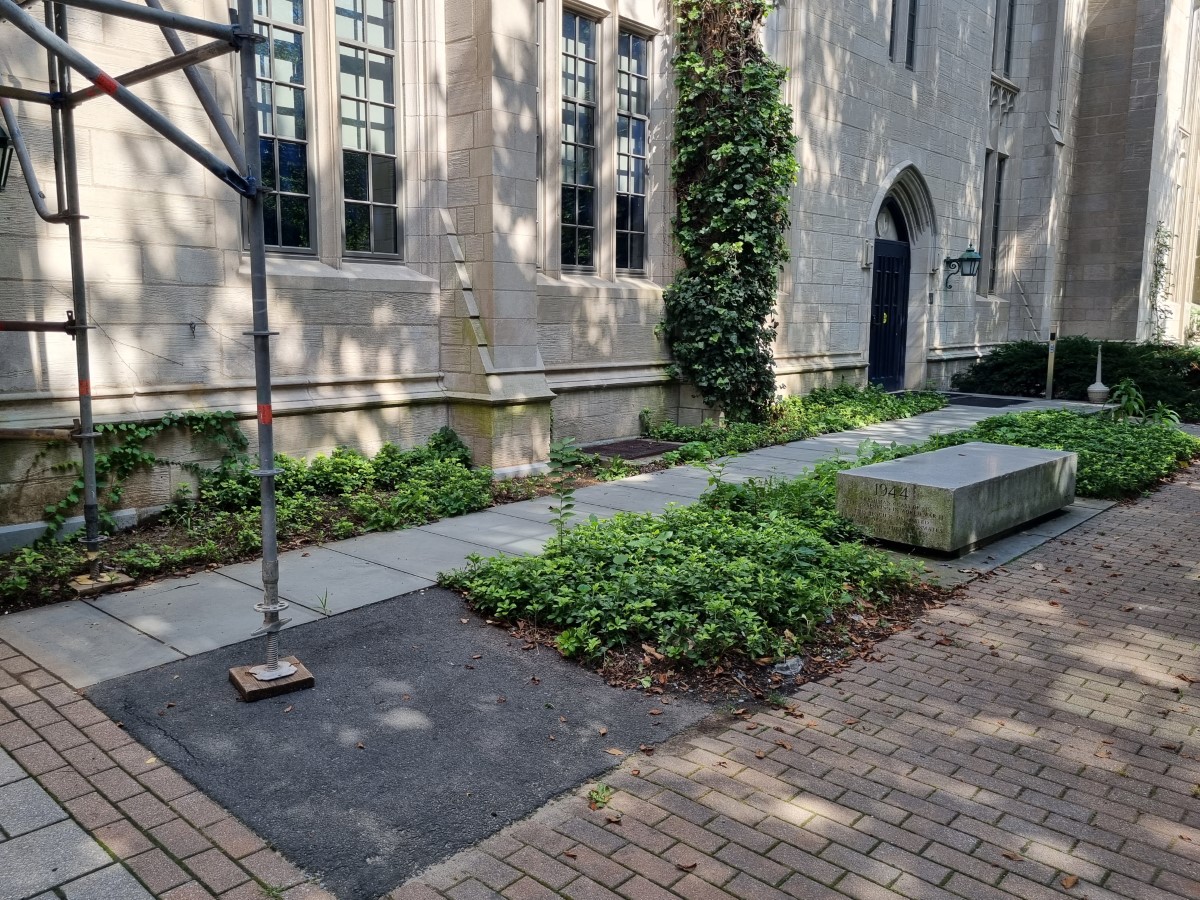

  • There is step-free access via slopes on the approach to Dickinson Hall.
  • The building has 4 entrances.
    Entry 1 has step-free level access and a push plate activated door (accessible entrance).
  • The entrances are signed Entry 1, Entry 2 and Entry 3. Entry 4 is not signed.
  • Entry 1, Entry 2 and Entry 4 are used to access the first floor of the building.
    Entry 3 is used to access the ground floor of the building and the restroom with adaptations.
    Entry 3 has sloped access and a manual door.

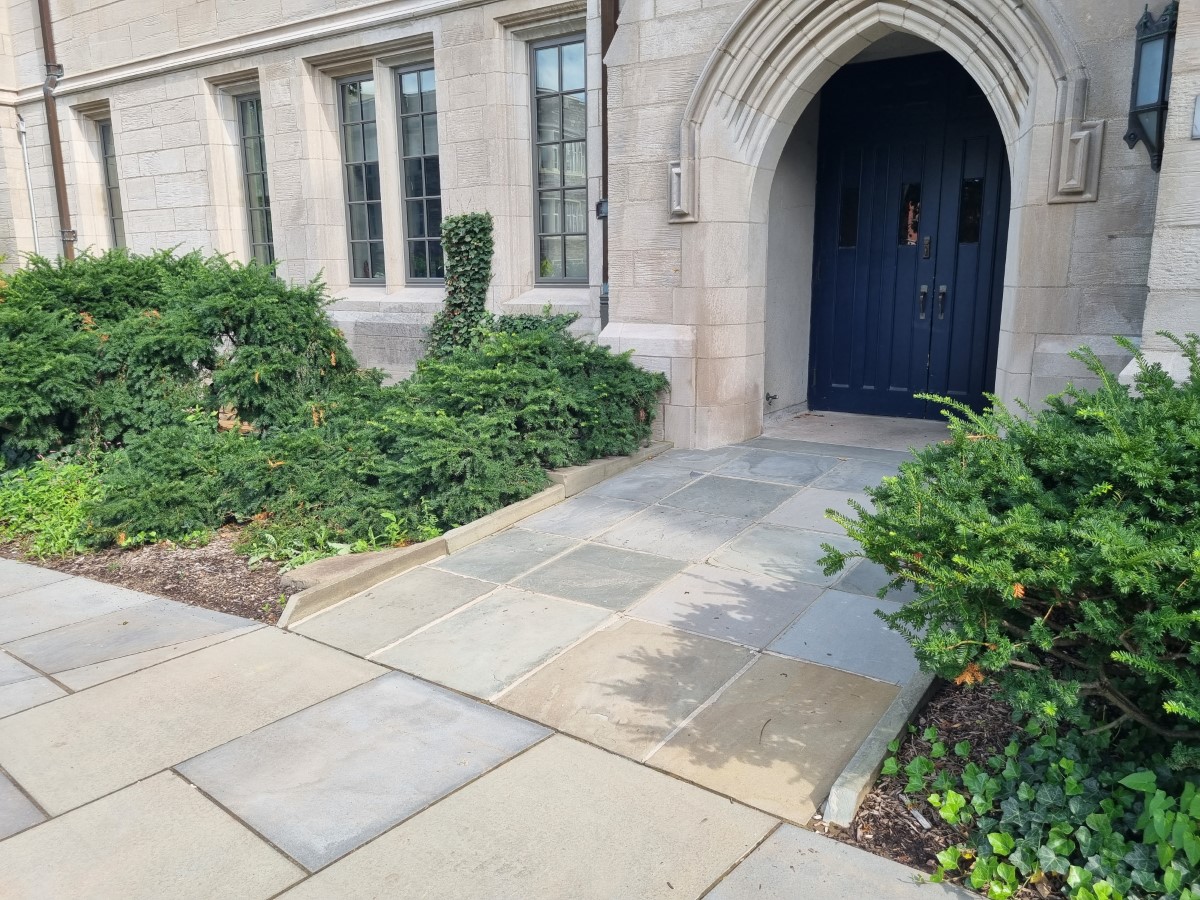

    Entry 2 and Entry 4 have stepped access and manual doors.

Getting Around

  • There is not step-free access around Dickinson Hall unless using the stair lift.
    The stair lift is located in the Entry 1 stairwell.
    The stair lift runs between the ground, first and second floors.
  • There is not step-free access to the third floor, it can only be accessed by the Entry 4 stairway.
    There are 5 rooms on the third floor accessed from the stairway lobby.
    There are 5 steps leading to rooms 210 and 211 on the second floor.
    An additional stair lift is available to overcome these steps.
  • There is internal access between Dickinson Hall and McCosh Hall on the first floor, via 4 steps.
  • Floor surfaces along circulation routes are hard and smooth, with some having a shiny finish.

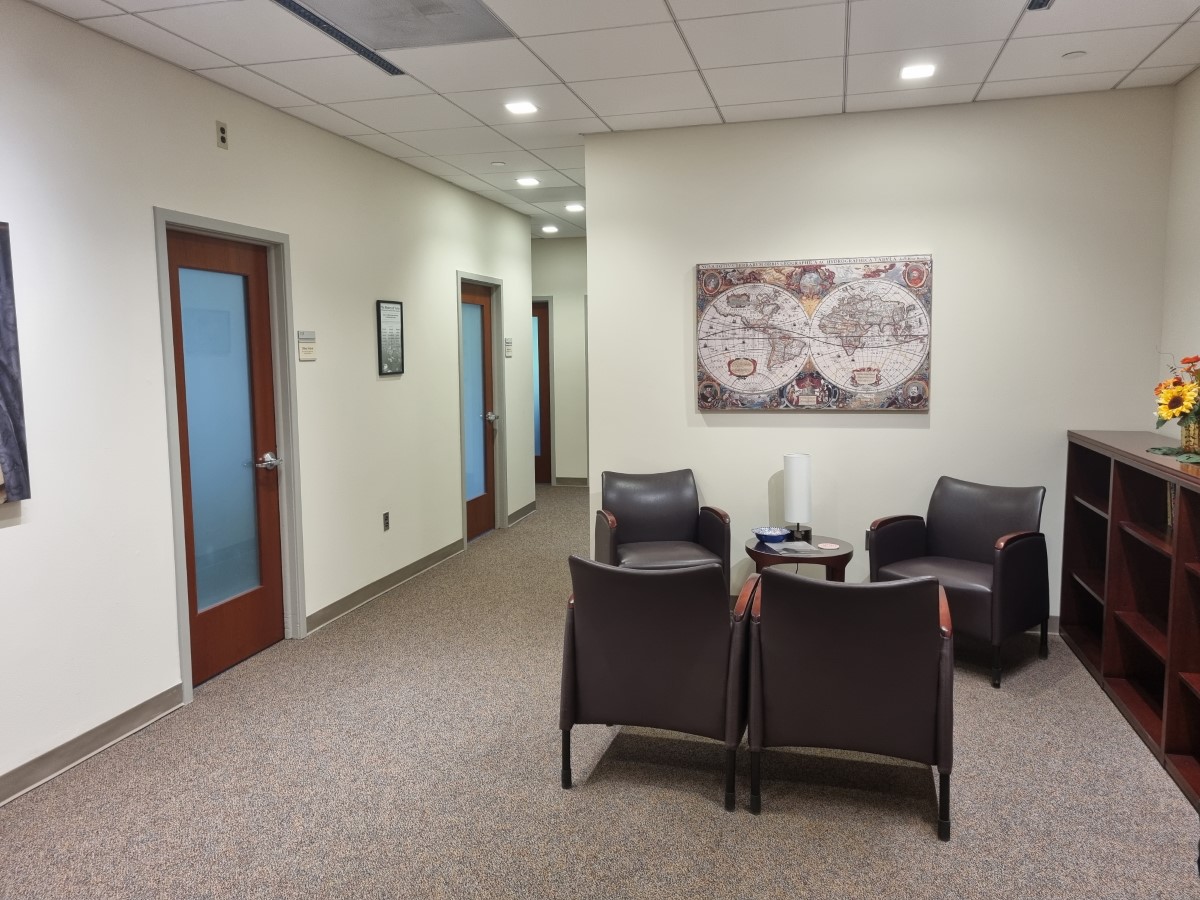

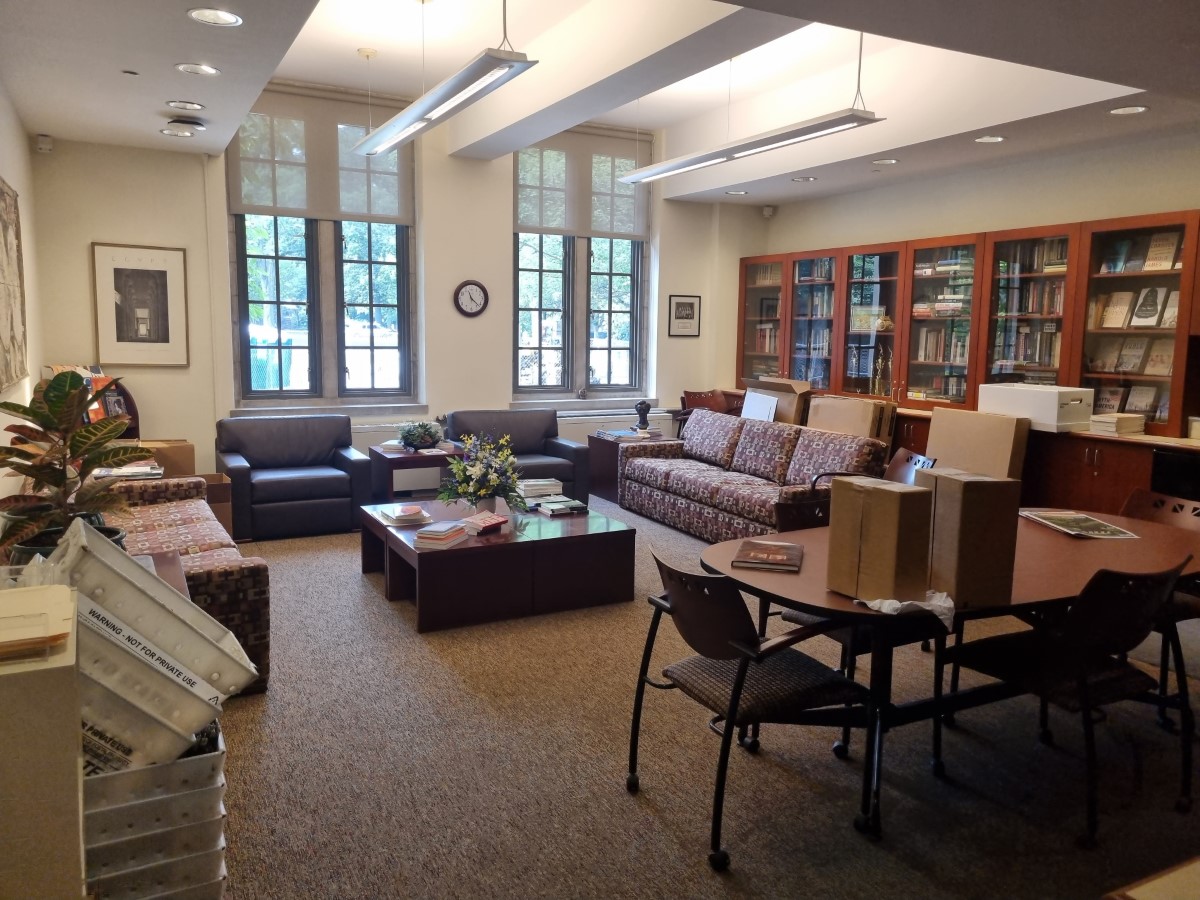

    Suite 113 in Dickinson Hall has carpeted flooring.

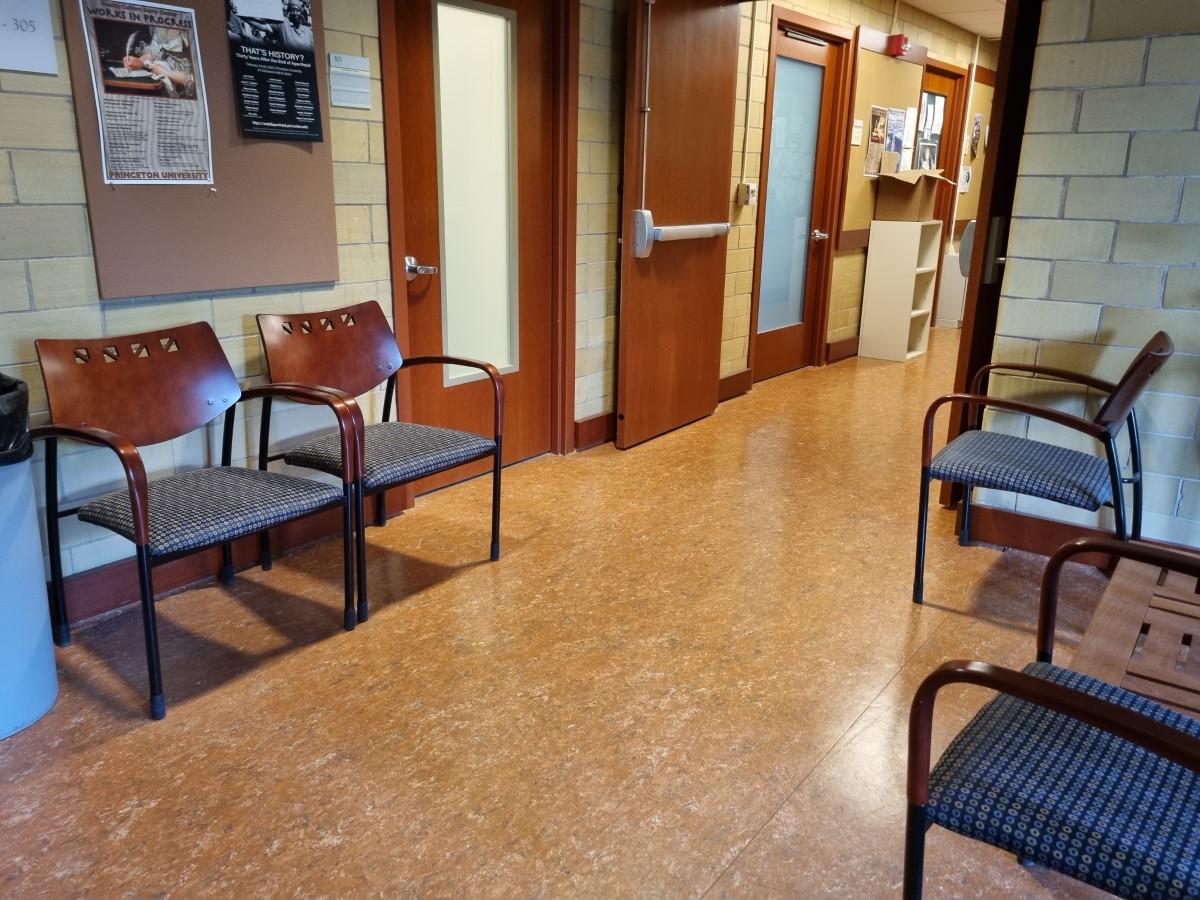

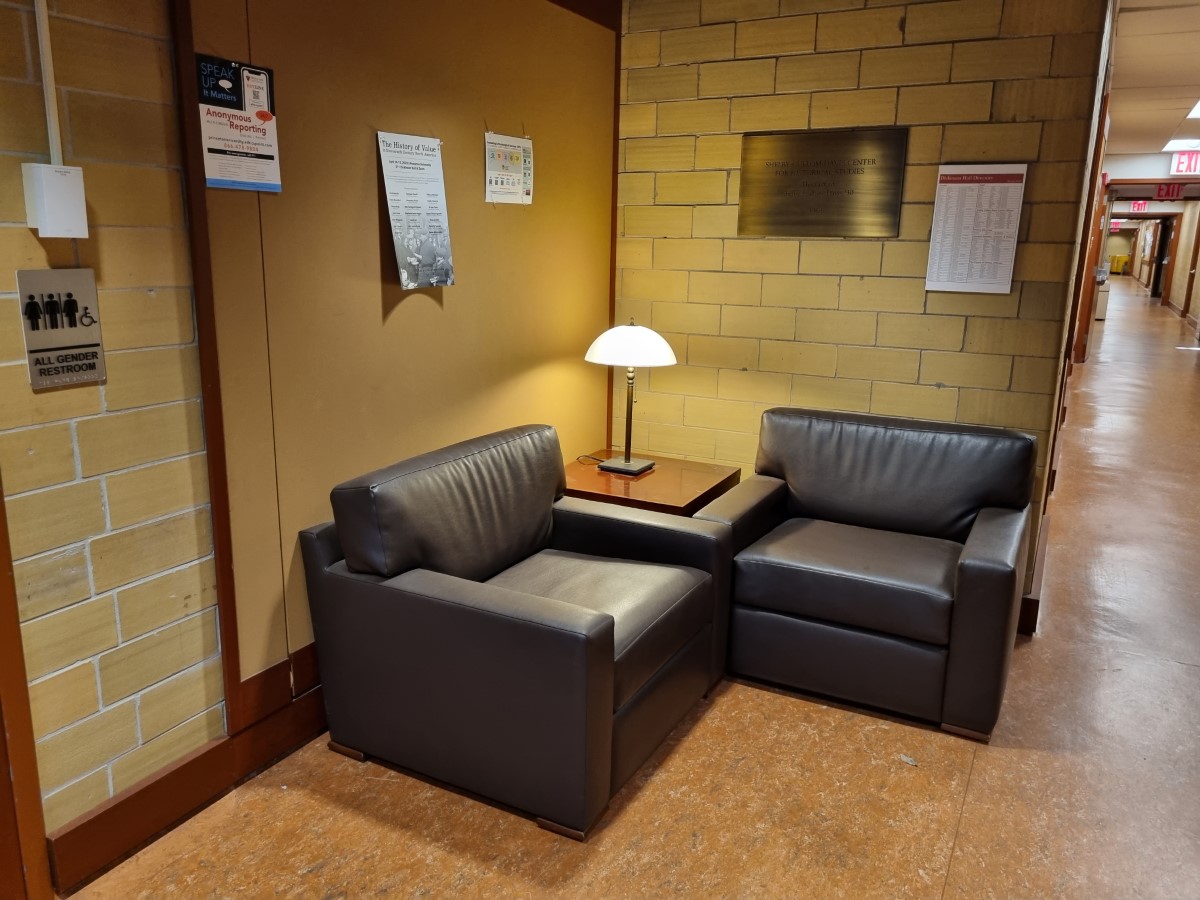

  • There are resting areas in some circulation and lobby areas with a mixture of seating.
  • Wayfinding signage and floor plans are provided in circulation routes and lobby areas.

Restrooms and Changing Facilities Available

  • There is 1 restroom with adaptations.

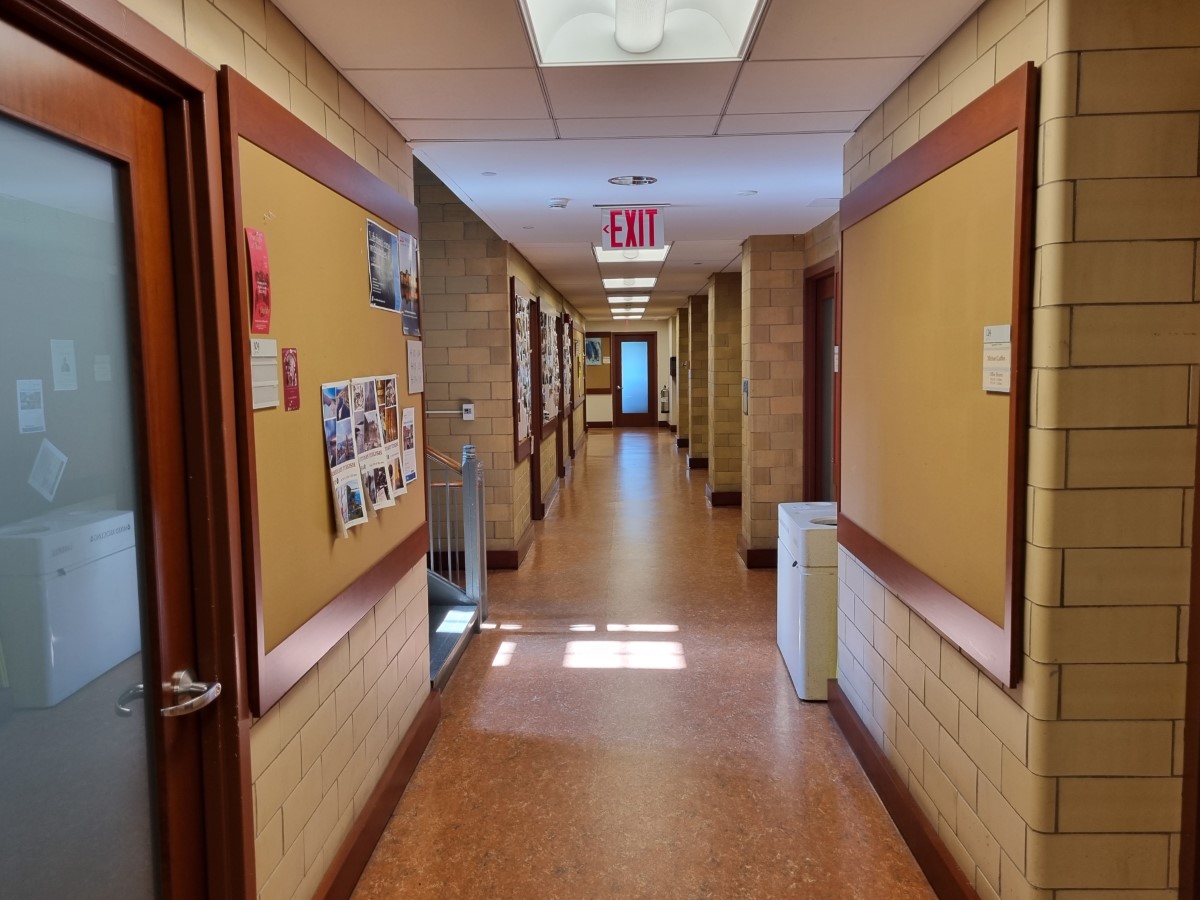

  • The restroom with adaptations is located at the end of the ground floor corridor.
  • The restroom with adaptations has a right hand transfer space.
  • Step-free female restrooms are located on the ground and first floors.
  • Step-free male restrooms are located on the ground and second floors.

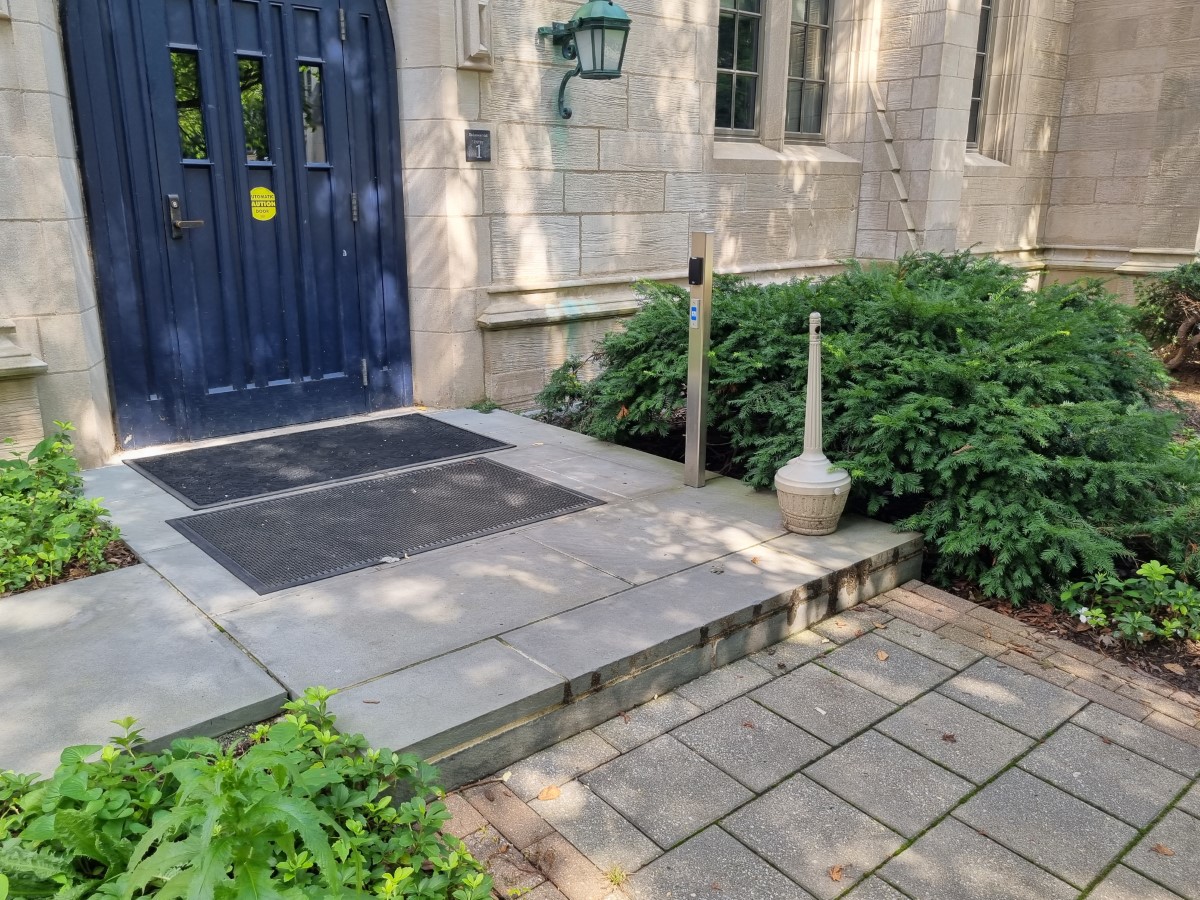

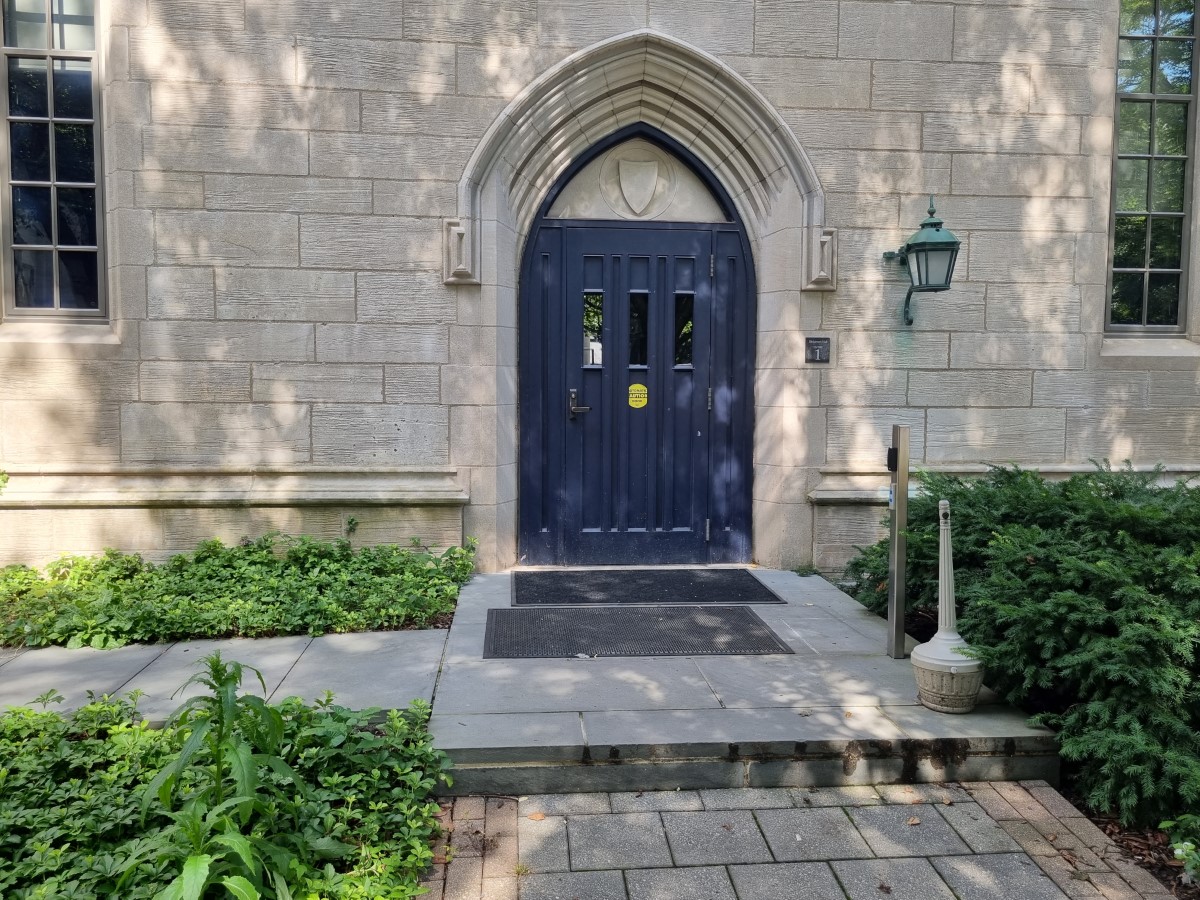

Entrance (Entry 1)

  • This entrance is located at the side of the building, facing the University Chapel.
  • This entrance gives access to a stairway with a stair lift.
  • There is step-free access via ramp at the entrance.
  • The ramp has a gradient easier than 1:20.
  • The width of the ramp is 3ft 5in (105cm).
  • The slope bypasses the step.
  • There is 1 step.
  • The height of the highest step is 6in (16cm).
  • There is a key fob/card reader at a height of 2ft 10in (87cm).
  • There is a single automatic door at this entrance.
  • The door opens towards you.
  • There is a push plate at a height of 2ft 4in (70cm).
  • The width of the opening is 2ft 8in (82cm).
  • The door has a high color contrast.

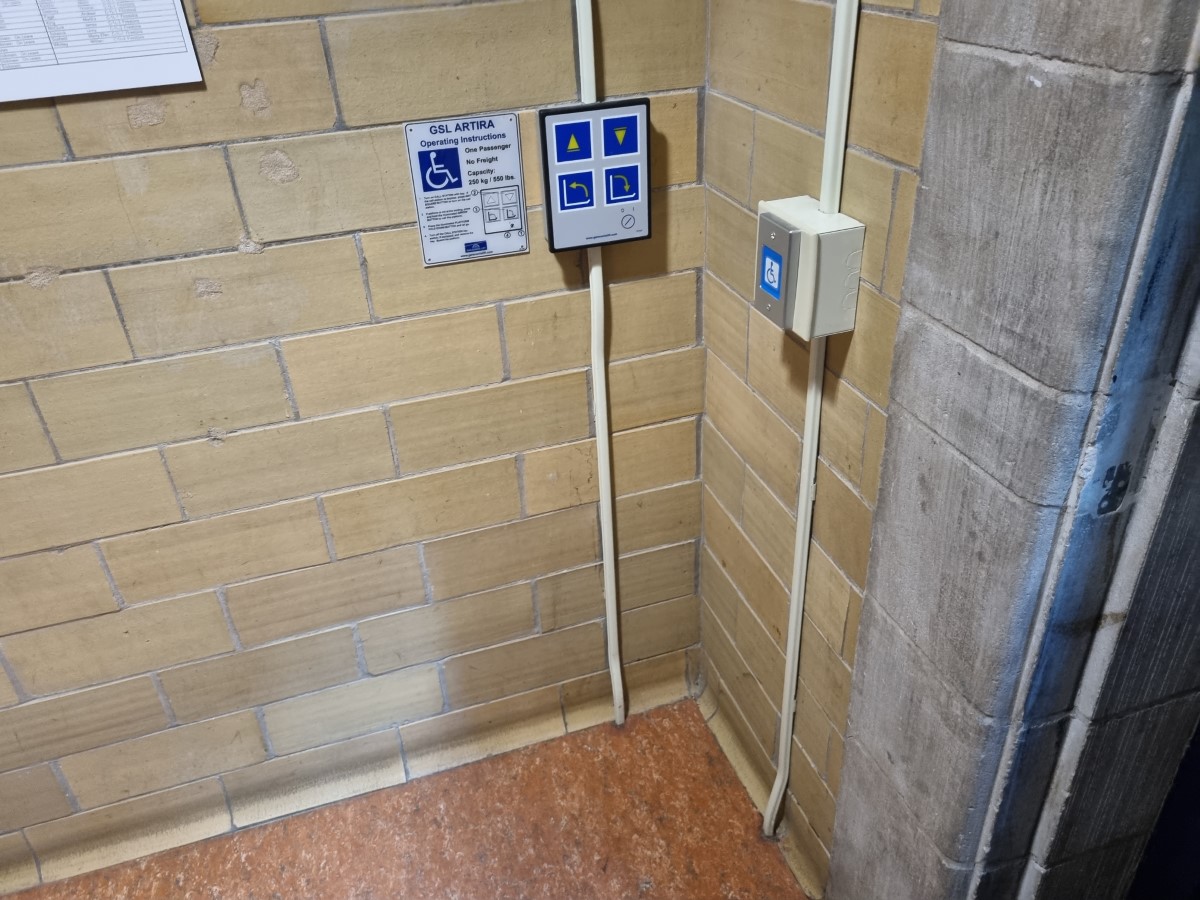

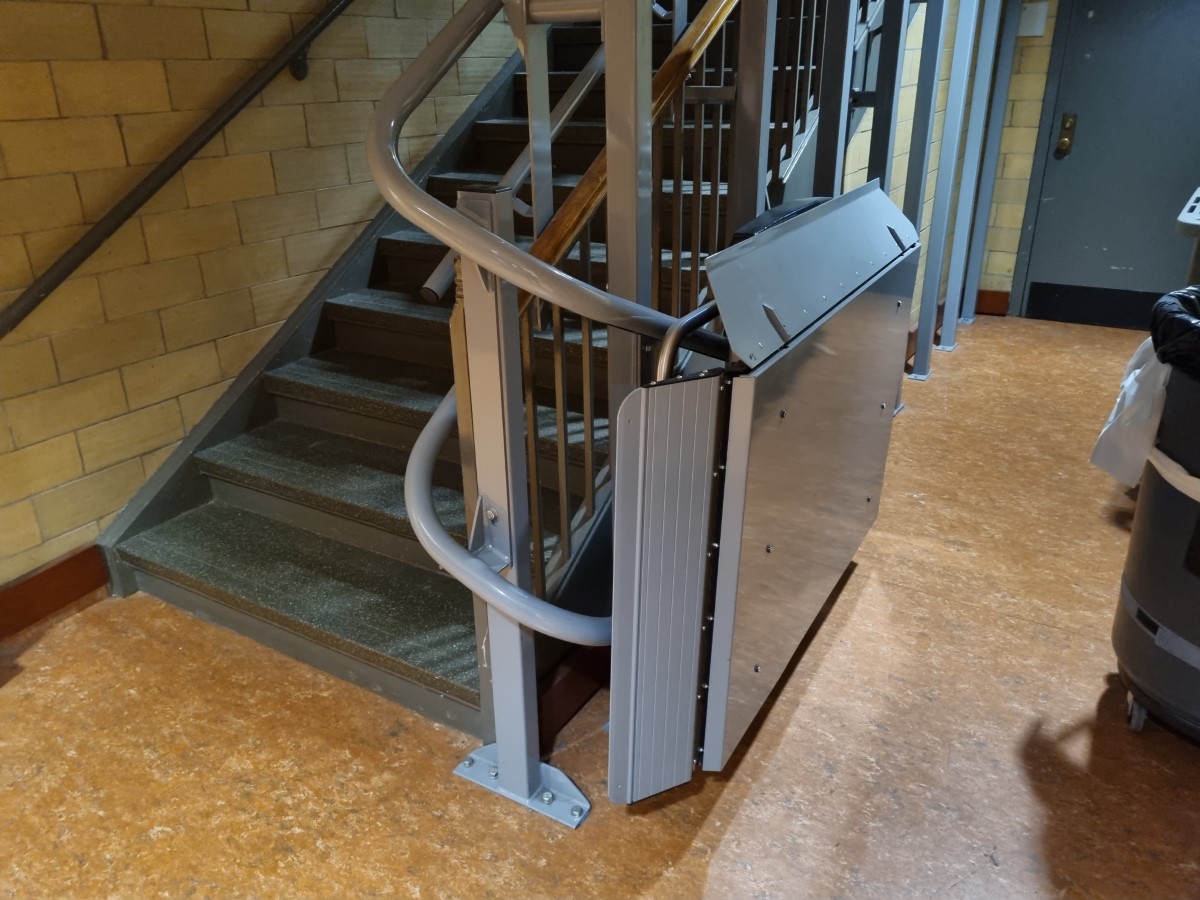

Stair Lift (Entry 1)

  • The lift is located on the stairway immediately beyond Entry 1.
  • The floors which are accessible by this lift are G, 1 and 2.
  • The lift has a turning space of 2ft 6in x 4ft (76cm x 122cm) in front of it.
  • The dimensions of the lift are 2ft 7in x 3ft 12in (80cm x 121cm).
  • The lift is slow moving and the button needs to be pressed constantly when in use.
  • There is a seat at a height of 1ft 7in (48cm) from the floor.
  • Lighting levels are low.

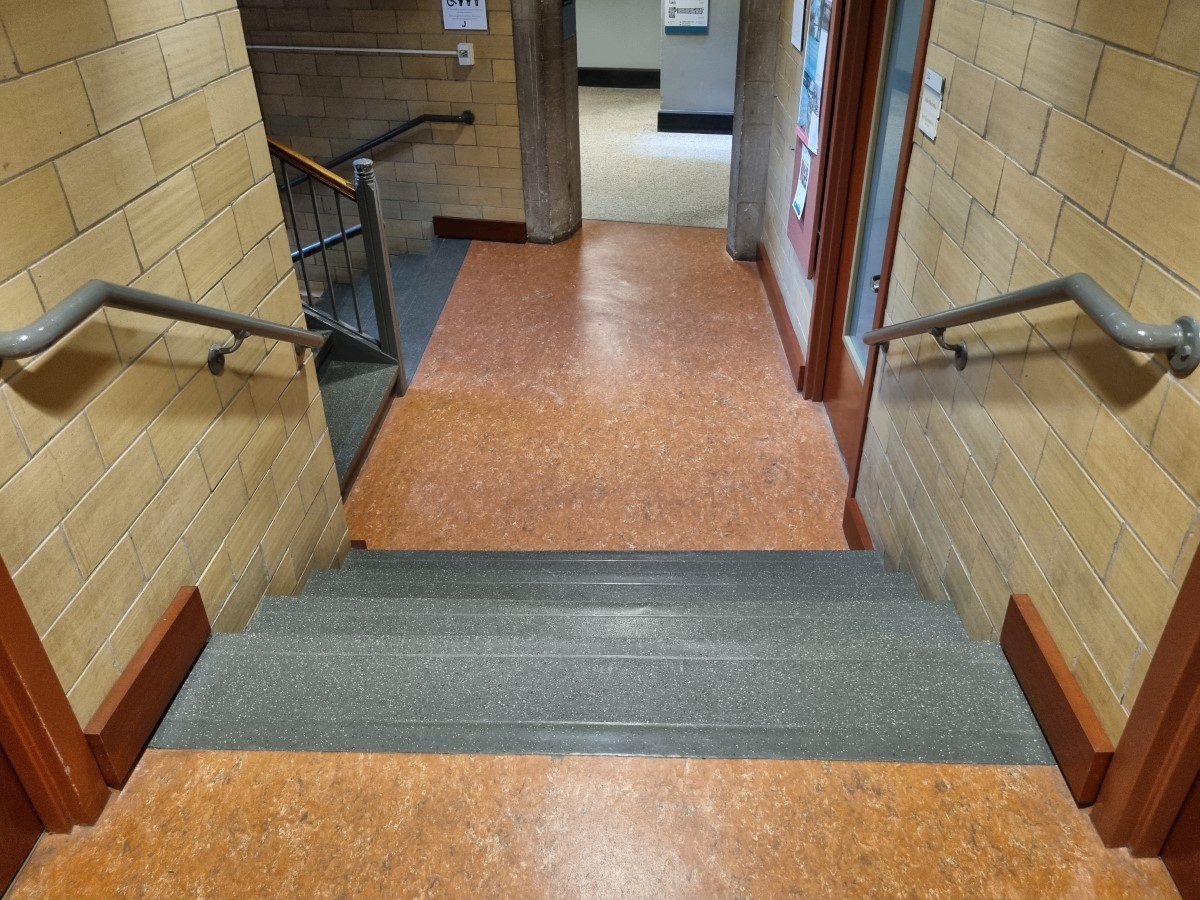

Stairway (Entry 1)

  • The floors which are accessible by stairway are G, 1 and 2.
  • There are 20 steps between floors.
  • There are handrails on both sides.
  • The handrails cover all steps.
  • The handrails extend horizontally beyond the first and last step.
  • The height of the highest step is 7in (17cm).
  • The minimum tread depth is 1ft 1in (32cm).
  • Lighting levels are low.

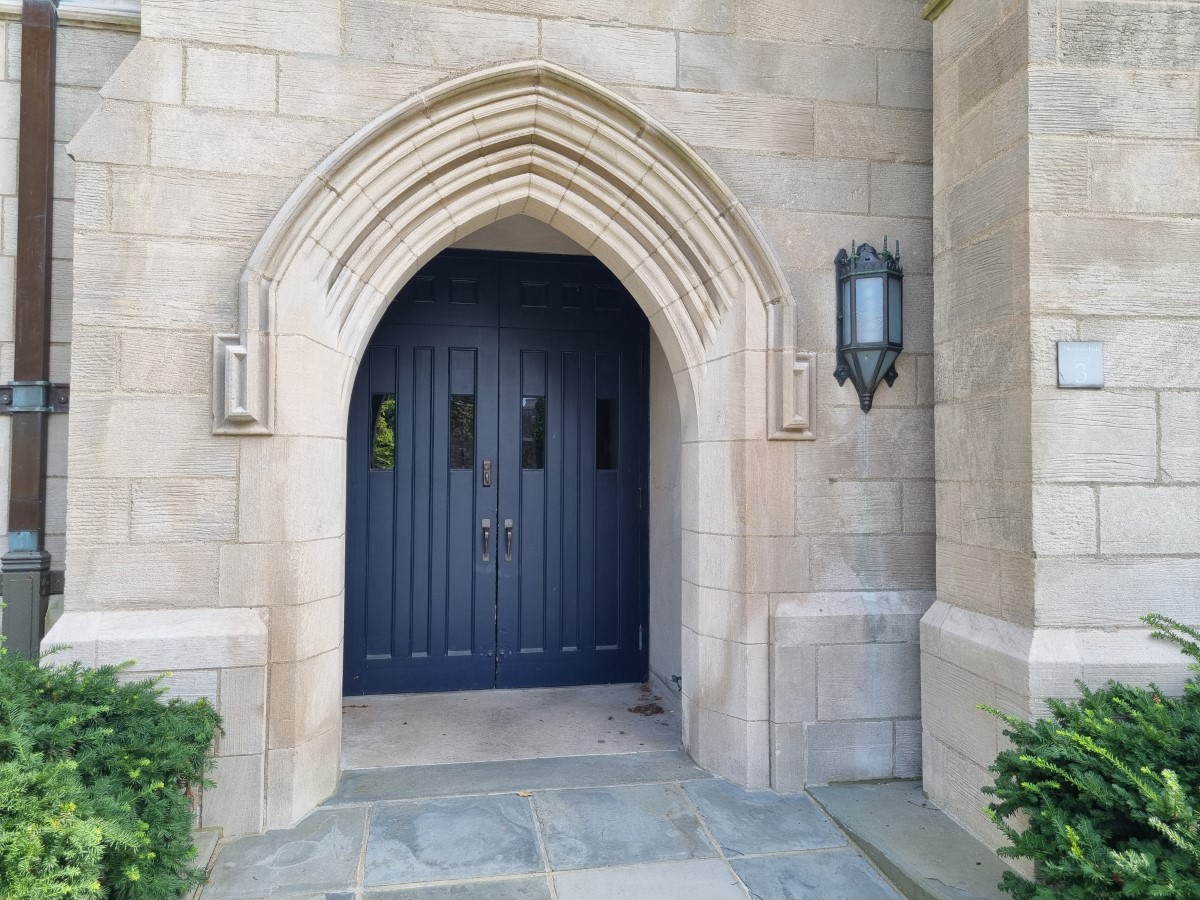

Entrance (Entry 3)

  • This entrance is located next to Washington Road.
  • This entrance gives access to the ground floor.
  • There is step-free access via a slope at the entrance.
  • The ramp has a gradient of 1:11.
  • There is a canopy or recess which provides weather protection at the entrance.

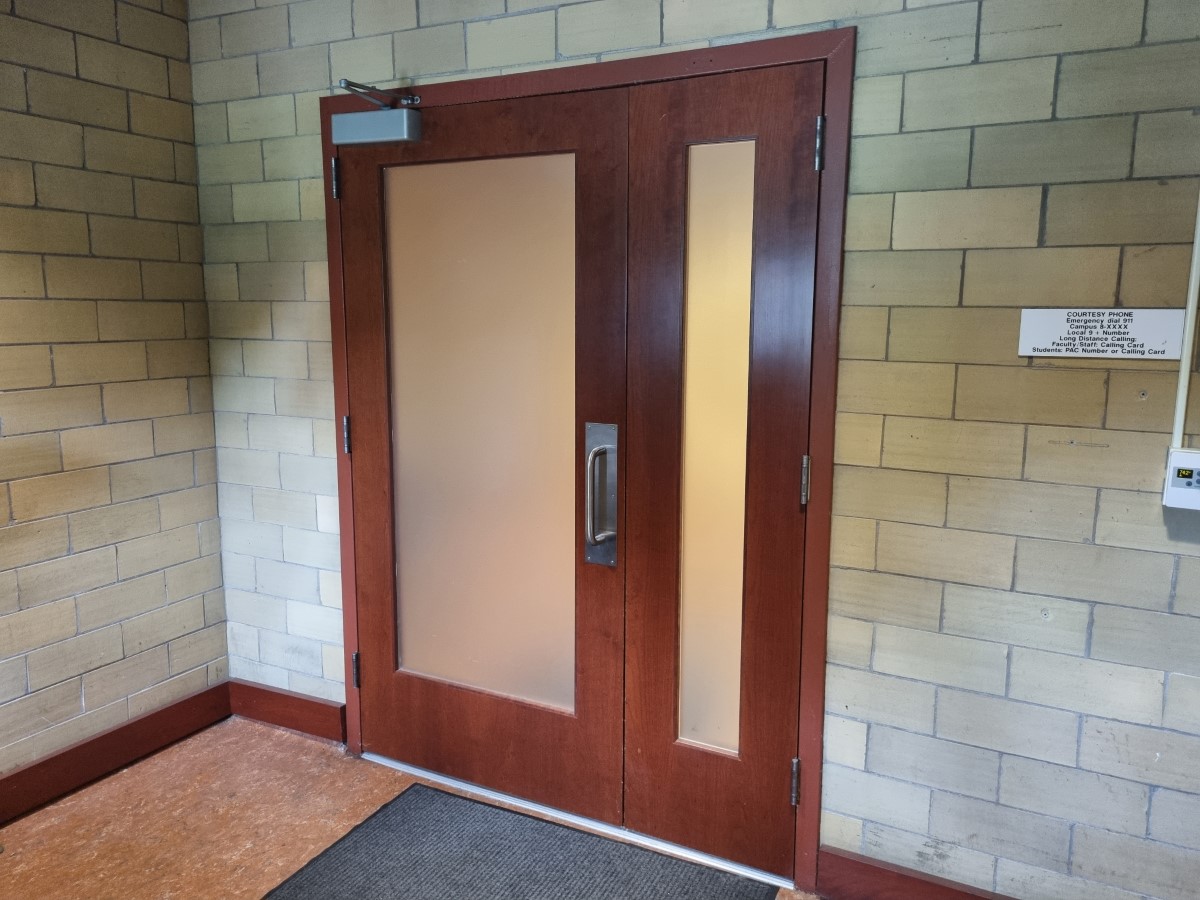

  • There are double manual doors at this entrance.
  • The doors open towards you.
  • The doors require effort to open.
  • The width of the opening is 4ft 7in (140cm).
  • The doors have a high color contrast.
  • There is a second manual door.
  • The second door opens towards you.
  • The second door requires effort to open.
  • The width of the opening is 3ft 1in (95cm).
  • There is a raised threshold at the opening.
  • The second door has a high color contrast.

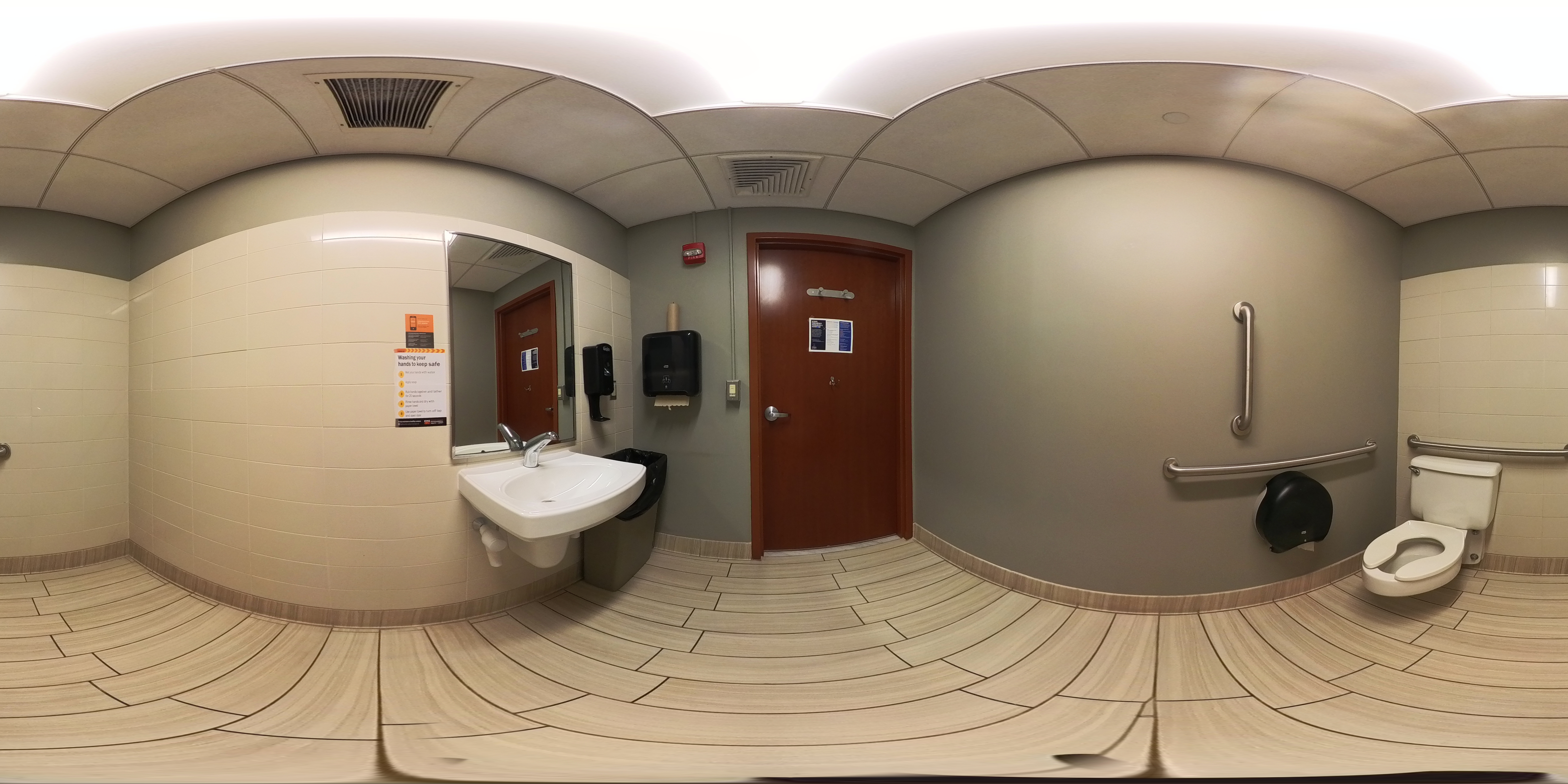

Restroom with Adaptations (Ground Floor - Right Hand Transfer - All Gender Restroom)

  • Location and Access View
    • The restroom surveyed is approximately 3yd 10in (3m) from the Entry 3 door.
    • There is step-free level access into the restroom.

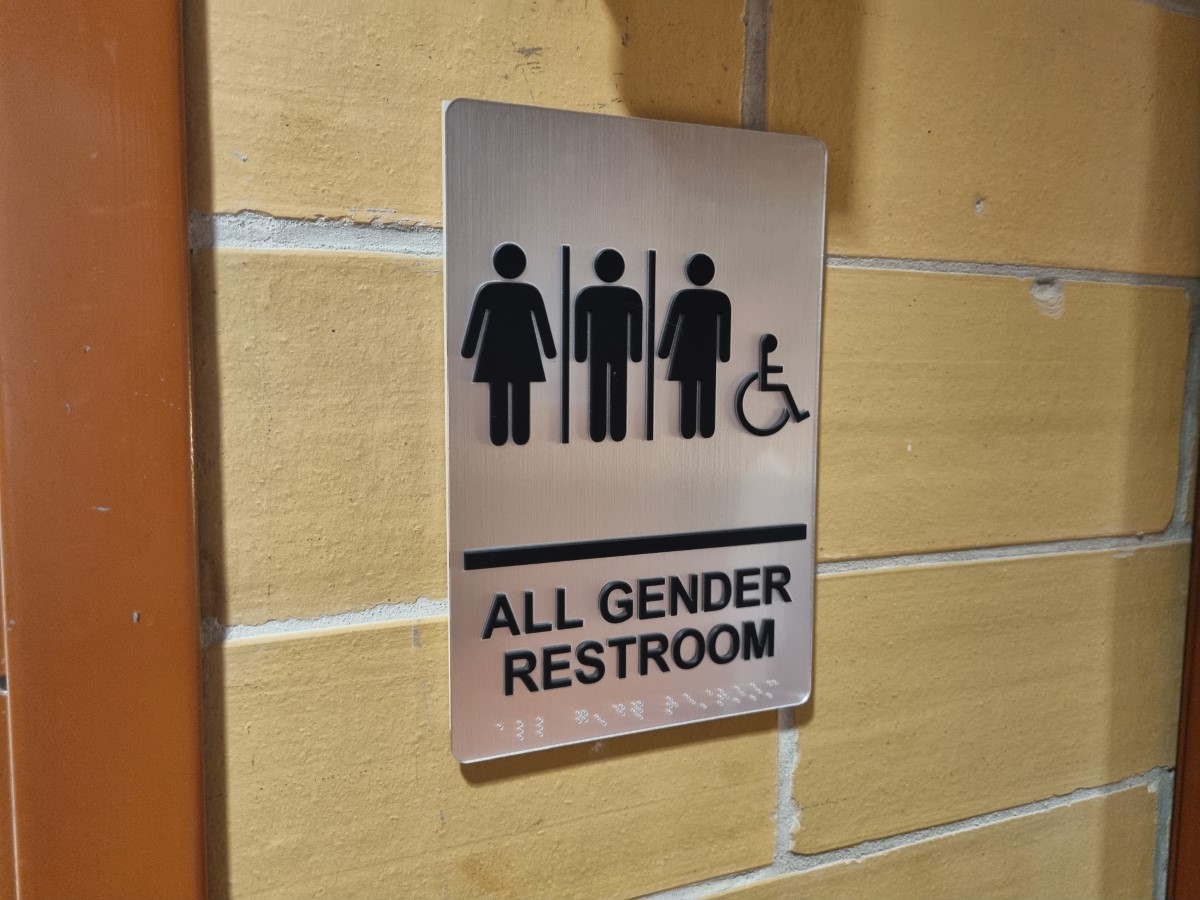

    • There is Braille, tactile, pictorial and written text signage on or near the restroom door.
    • The door into the restroom opens outwards and has a high color contrast.
    • The door requires effort to open.
    • The width of the restroom door opening is 2ft 9in (84cm).
    • The door has a push button lock.
    • Internally the door has a high color contrast.
  • Dimensions and Features View
    • The overall dimensions are 5ft 9in x 9ft 4in (176cm x 285cm).
    • The turning space dimensions are 5ft 9in x 7ft 3in (176cm x 220cm).
    • There is a lateral transfer space to the right of the WC as you look at it.
    • The lateral transfer space is 3ft 10in (118cm) (from the side of the WC pan to the wall).
    • There is a lever flush on the non-transfer side.
    • There is a horizontal grab bar on the rear wall and on the side wall.
    • The horizontal grab bars have a high color contrast with the surrounding walls.
    • There is a vertical grab bar on the side wall.
    • The vertical grab bar has a medium color contrast with the surrounding walls.
    • The WC seat is 1ft 6in (46cm) from the floor.
    • The WC seat has a low color contrast.
    • There is a wall mounted toilet paper dispenser which can be reached when seated on the WC.
    • The toilet paper dispenser has a high color contrast.
    • The toilet paper dispenser is 1ft 7in (49cm) from the floor.
    • The sink is 2ft 10in (87cm) from the floor.
    • The sink faucet type is sensor.
    • There is a wall mounted soap dispenser.
    • The soap dispenser has a high color contrast.
    • The soap dispenser is 3ft 8in (113cm) from the floor.
    • There is a wall mounted paper towel dispenser.
    • The paper towel dispenser has a high color contrast.
    • The paper towel dispenser is 3ft 7in (110cm) from the floor.
    • There is a mirror.
    • The stall has a wastebasket.
    • There are two coat hooks.
    • The coat hooks are 3ft 11in and 5ft 11in (120cm and 180cm) from the floor.
    • There is a varying color contrast between the walls and floor.
    • Lighting levels are bright.
